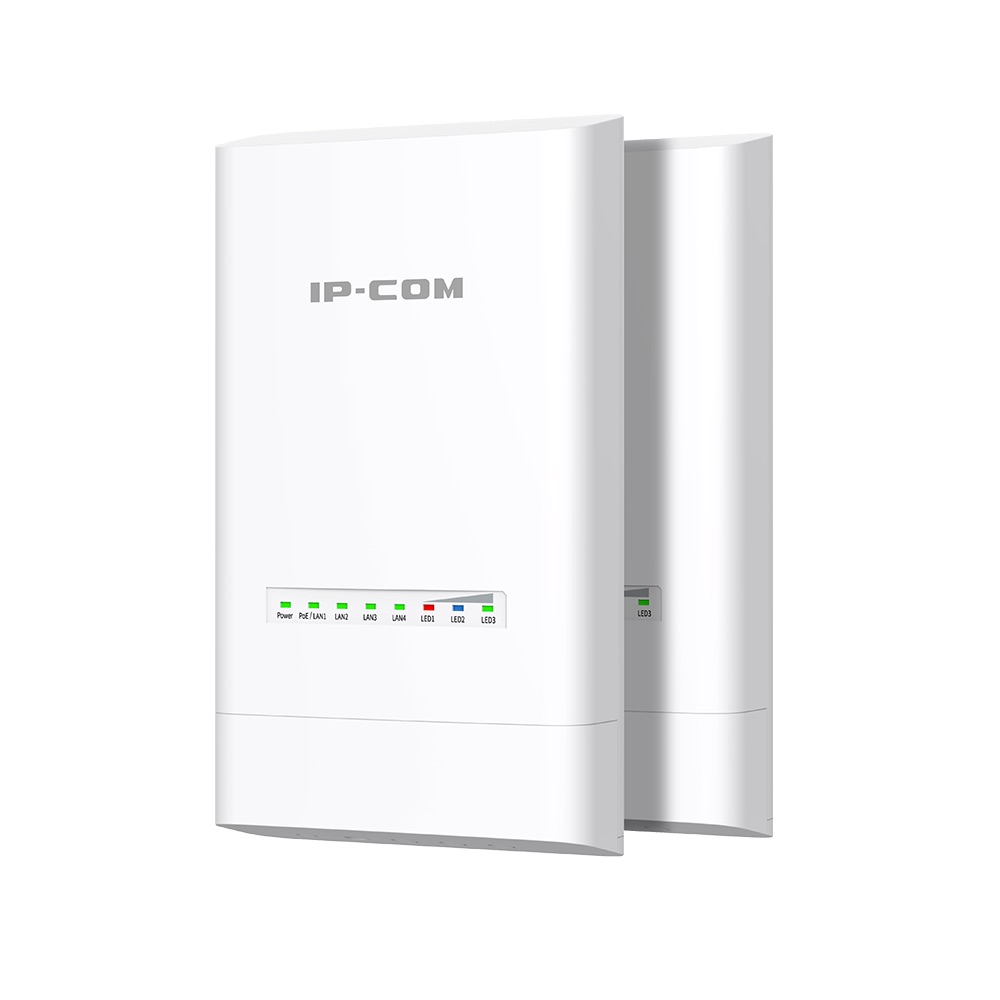

IP-COM LOCO M5 IP-CPE6S 3000MBPS 12DBI 5GHz OUTDOOR ACCESS POINT
Ücretsiz kargo!
- Memnuniyet Garantisi
- Sorunsuz Geri Ödeme
- Güvenli Ödemeler
IP-COM CPE6S
5 GHz 12dBi ipMAX ac Dış Mekan CPE
- Pre-configured & plug and play（kit）
- 5GHz 11AC 867Mbps
- 12dbi yönlü anten
- Dört hızlı Ethernet Bağlantı Noktası
- IP65 su geçirmez muhafaza
- 6000V Yıldırımdan Korunma
- 12V 1A DC/12V 1A Pasif PoE destekli
| Model | CPE6S |
| Dimensions | 193*109*61mm |
| Deployment | Pole/Wall Mount |
| Application Scenarios | PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance |
| Frequency Range | 5GHz |
| Compliant Standards | IEEE 802.11a/n/ac |
| Private TDMA Protocol | ipMAX |
| Maximum Wireless Rate | 867Mbps |
| Interfaces | 4*10/100Mbps Ethernet Port |
| Antennas Gain | 12dBi |
| Antenna Beamwidth | Horizontal: 30° Vertical: 30° Elevation: 30° |
| Reset Button | 1 |
| Power Consumption | 4.7W |
| Waterproof Level | IP65 |
| LED indicator | Power,PoE/LAN1,LAN2,LAN3,LAN4LED1,LED2,LED3 |
| Power Method | 12V1A Passive PoE 12V 1A DC |
| Lightning Protection | 6000V |
| PoE 802.3af/at | / |
| Passive PoE | Passive power over ethernet via PoE/LAN (+4,5pins; -7,8pins ) up to 60 meters Voltage range: 11-13V DC |
| Receive sensitivity | 11a 6Mbps -92dBm±1.5dBm 11n MCS7 HT20 -72dBm±1.5dBm 11ac MCS9 HT80 -64dBm±1.5dBm |
| Package Contents | 1*5GHz 12dBi ipMAX ac Outdoor CPE 1*Power adapter 1*PoE Injector 1*Quick Installation Guide |
| Operating Temperature | -30℃ ~ 60℃ |
| Storage Temperature | -40℃ ~ 70℃ |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 10%~90% non-condensing |
| Default login IP | 192.168.2.1 |
| Default Login Username | admin |
| Default Login Password | admin |
| Certifications | FCC/CE/RoHS |
