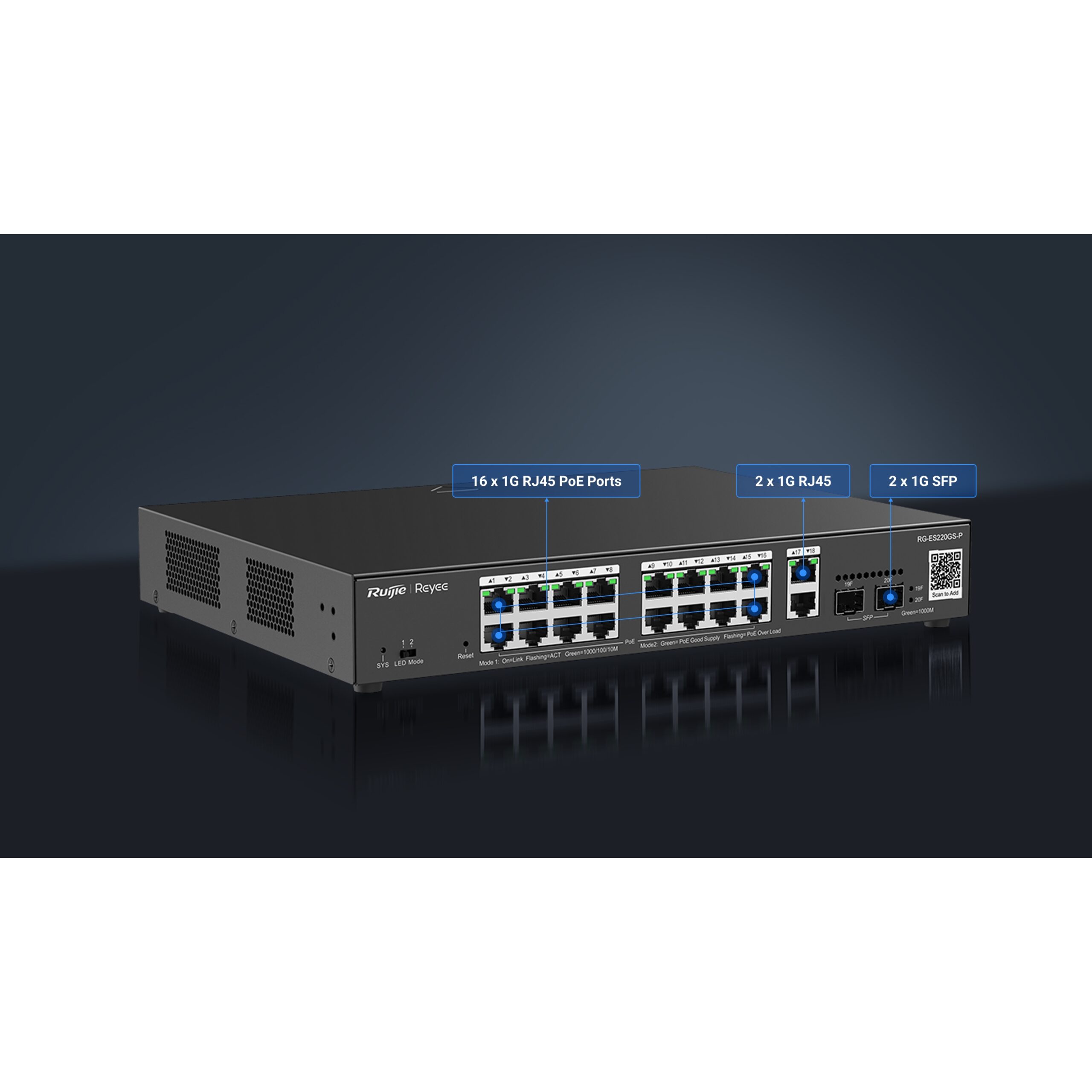

RUIJIE REYEE RG-ES220GS-P 16 PORT 10/100/1000 16 PORT POE 2 PORT UPLINK 2 SFP 250W CLOUD YÖNETİLEBİLİR RACK MOUNT SWITC
Ücretsiz kargo!
- Memnuniyet Garantisi
- Sorunsuz Geri Ödeme
- Güvenli Ödemeler
POE Switch RG-ES220GS-P Product Specification |
|
| Ports | RG-ES220GS-P 16 Ports 10/100/1000 Base-T
IEEE 802.3af/at (PoE/PoE+) |
| Maximum output power per PoE port | 30W |
| 10/100/1000Base-T ports | 18 |
| 1000Base-X SFP ports | 2 |
| PoE/PoE+ ports | 16 |
| Max. PoE budget | 250W |
| Layer Type | Layer 2 |
| Switching capacity | 40 Gbps |
| Forwarding rate | 29.76 Mpps |
| Packet Buffer | 4.1 Mbit |
| MAC address table | 8000 |
| Maximum VLAN Support | 16 |
| Dimensions (W x D x H) | 300 mm x 223 mm x 43.6 mm |
| Weight (With package) | 2.8 kg |
| MTBF (Hours) | > 200,000 |
Software Features |
|
| 10/100/1000M Auto/Full/Half Duplex Negotiation | Support |
| Flow Control | Support |
| Storm Suppression | Support |
| Management IP | 10.44.77.200 |
| VLAN | Support 802.1Q VLAN *** 16 VLAN |
| Port-based VLAN | Support |
| DHCP Client | Support |
| DHCP Snooping | Support |
| Many-to-one Port Mirroring | Support |
| Downlink Loop Protection | Support |
| Loop Disabled Port | Support |
| Disconnection Duration | Support |
| Cable Testing | Support |
| Management | Web-based Management Ruijie Cloud Management Ruijie App Cloud |
| Reset Button | Front |
| Power Supply Slot | Single, fixed power supply |
| Power Consumption | ≤ 280W |
| Power Supplies | 100 – 240V AC, 6A |
| Fan Adaptive Speed Adjustment | Support |
| Acoustic Noise | < 45dB |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 10% to 90% RH |
| Storage Humidity | 5% to 95% RH |
| Port Surge | 4 kV |
| Certificate | CE, RoHS |
