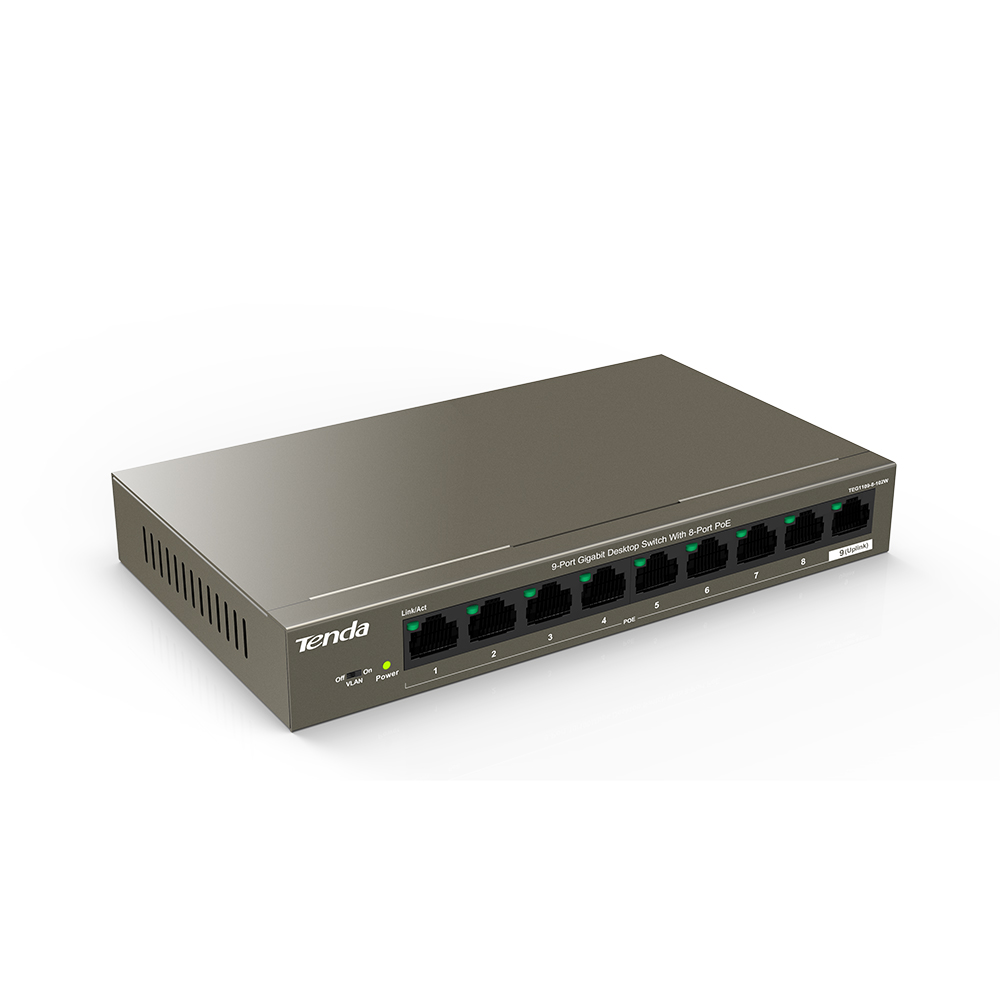

TENDA TEG1109P-8-102W 9 PORT 10/100/1000 8 PORT POE 102W YONETILEMEZ DESKTOP SWITCH
Ücretsiz kargo!
- Memnuniyet Garantisi
- Sorunsuz Geri Ödeme
- Güvenli Ödemeler
TENDA TEG1109P-8-102W 9 PORT 10/100/1000 8 PORT POE 102W YONETILEMEZ DESKTOP SWITCH
| Network standards | IEEE 802.3、 IEEE 802.3u、IEEE 802.3ab、IEEE 802.3x、 IEEE 802.3af、IEEE 802.3at |
| LED Indicator | 9* Link/Ack LED indicators |
| 1 * Power LED indicator | |
| Interfaces | 8*10/100/1000 Base-T Ethernet Ports(Data/Power) |
| 1*10/100/1000 Base-T Ethernet Ports(Data) | |
| Transmission media | Recommended: CAT5/5e UTP or better |
| Dimension | 177.5mmx104.0mmx26.0mm |
| Level of protection | Lightning protection for ports: 6kV |
| Lightning protection for power: 6kV | |
| ESD: | |
| Air discharge: ±10kV | |
| Contact discharge: ±8kV | |
| Forwarding mode | Store-and-forward |
| Switch capacity | 18 Gbps |
| Packet forwarding rate | 13.4Mpps |
| Buffer | 2M |
| MAC address table | 16K |
| PoE budget | Single port: AF: 15.4W, AT: 30W |
| Whole device: 92W | |
| Power consumption | / |
| Input voltage | 100-240V AC 50/60Hz |
| 51V /2.0A DC（Power Adapter Output ） | |
| Mounting | Desktop mounting: support |
| Wall mounting: support | |
| Rack mounting:non-support | |
| Environment | Operating Temperature: 0℃~45℃ |
| Storage Temperature: -40℃~70℃ | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
| Certification | FCC、CE、RoHS |
| Funtions | Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other. |
| VLAN: ports 1 to 8 are isolated from each other, but can communicate with ports 9 (uplink port) respectively. |
