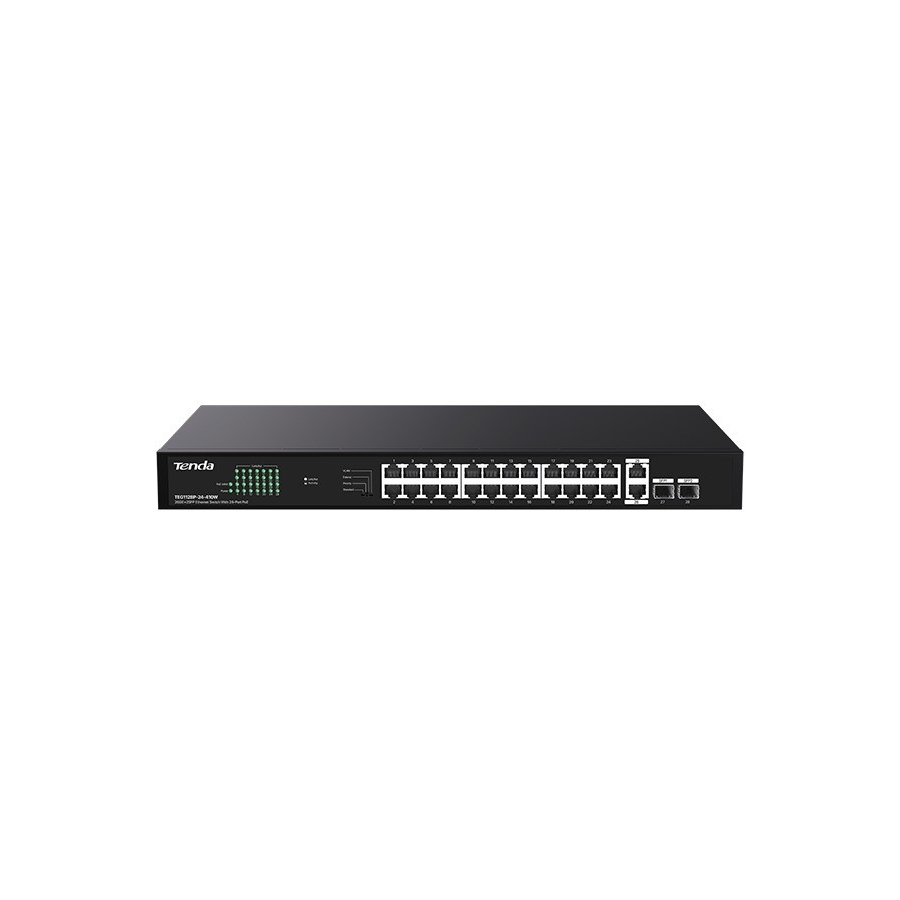

TENDA TEG1128P-24-410W 24 PORT 10/100/1000 POE 2 PORT UPLINK +2 SFP 410W YONETILEMEZ RACK MOUNT SWITCH
Ücretsiz kargo!
- Memnuniyet Garantisi
- Sorunsuz Geri Ödeme
- Güvenli Ödemeler
TENDA TEG1128P-24-410W 24 PORT 10/100/1000 POE 2 PORT UPLINK +2 SFP 410W YONETILEMEZ RACK MOUNT SWITCH
| Network standards | IEEE 802.3 |
| IEEE 802.3u | |
| IEEE 802.3ab | |
| IEEE 802.3x | |
| IEEE 802.3af | |
| IEEE 802.3at | |
| LED Indicator | Power |
| Link/Act | |
| PoE MAX | |
| Interfaces | (26)1GE RJ45 ports |
| (2)1GE SFP ports | |
| Transmission media | Recommended: CAT5/5e UTP or better |
| Fan quantity | 1 |
| Dimension | 440mm*240mm*44mm |
| Level of protection | Port: 6 KV |
| Power：6 KV | |
| Forwarding mode | Store-and-forward |
| Switch capacity | 56Gbps |
| Packet forwarding rate | 41.7Mpps |
| Buffer | 4Mb |
| MAC address table | 8K |
| PoE budget | Single port: AF: 15.4W, AT: 30W |
| Whole device: 370W | |
| Power consumption | 410W |
| Input voltage | 100-240V AC，50 / 60Hz |
| Mounting | Rack mounting : support |
| Desktop mounting: support | |
| Wall mounting: support | |
| Environment | Operating temperature：0°C – 45℃ |
| Storage temperature：-40°C – 70°C | |
| Operating humidity：10% – 90%,non-condensing | |
| Storage humidity：5% – 90%,non-condensing | |
| Certification | FCC, CE, RoHS |
| Funtions | One-key to change network mode: |
| 1.Standard: All ports can communicate with each other. It can be used as a common non-management PoE switch. | |
| 2.Priority: Ports 1 to 8 are high-priority ports, which greatly reduce packet loss and congestion when the network is congested. | |
| 3.Extend: The maximum transmission distance of the 17-24 ports of the switch can reach 250 meters, and all ports can communicate with each other. | |
| 4.VLAN: Ports 1 to 24 cannot communicate with each other, but can communicate with ports 25, 26, SFP1 (27), and SFP2 (28), which can be used to isolate broadcast storms and DHCP conflicts. |
