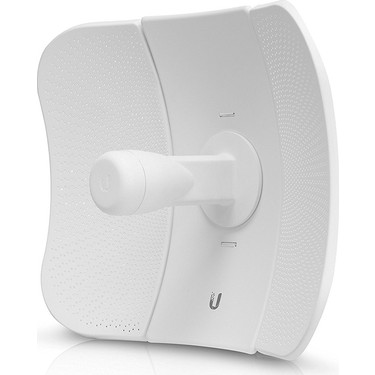

UBIQUITI LITEBEAM M5 LBE-M5-23 5GHz 23DBI OUTDOOR ANTEN
Ücretsiz kargo!
- Memnuniyet Garantisi
- Sorunsuz Geri Ödeme
- Güvenli Ödemeler
UBNT LITEBEAM M5 LBE-M5-23 5GHz 23DBI OUTDOOR ANTEN
Lightweight and compact, outdoor 5 GHz, 23 dBi bridge.
5 GHz, 15+ km link range
Up to 100 Mbps throughput
Easy to assemble
| Dimensions | 362 x 267 x 184 mm (14.25 x 10.5 x 7.2″) |
| Weight | 750 g (1.7 lb) |
| Mounting | Pole mounting (Kit included) |
| Hardware | |
|---|---|
| Networking interface | (1) 10/100 MbE RJ45 port |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power supply | 24V, 0.2A PoE adapter (Included) |
| Supported voltage range | 22–27V DC |
| Max. power consumption | 7W |
| ESD/EMP protection | Air/contact ± 24kV |
| ETSI specification | EN 302 326 DN2 |
| Shock and vibration | ETSI300-019-1.4 |
| RoHS compliance | Yes |
| Ambient operating temperature | -40 to 70° C (-40 to 158° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| Software | |
| Operating frequency | Worldwide: 5150 – 5875 MHz USA: 5725 – 5850 MHz |
| Output power | 25 dBm |
| Gain | 23 dBi |
| Max. VSWR | 1.5:1 |
